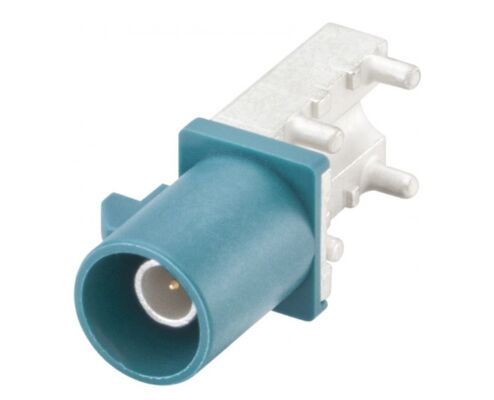

FAKRA HSD Connector 4 Plus 2 Pin Female Code Z Featuring Robust Mechanical Performance with Mating Cycles Above 25 Times
Détails sur le produit
| Impédance | 100Ω | Fréquence | DC à 6 GHz |
|---|---|---|---|
| Résistance d'isolation | ≥1000 MΩ | Tension d'essai | 250 V RMS |
| Tension de fonctionnement | 100 V RMS | Courant d'alimentation | C.C de ≤1.5A |
| Température de travail | -40℃ | +105℃ | Souligner | Connecteur PCB FAKRA HSD, femelle Connecteur FAKRA HSD, automobile FAKRA Z femelle |
Description de produit
Product Description
HSD 4+2 Pin Female Code Z For Automotive Power HSD PCB Connector
Description:
HSD PCB connector connectors provide connectivity solutions for automotive infotainment modules, cameras, GPS, display devices, and remote vehicles. RF High Speed Data (HSD) cable assembly is a 100Ω connection system for differential and digital data transmission. HSD connector products are designed for high speed data transmission to meet automotive data rates up to 6GHz.
Key Feature:
1. Single solution for digital transmission standards
2. Female contacts with tight entries to prevent mismatches and stubs
3. 100Ω impedance
4. Combined with the following devices
-Low Voltage Differential Signaling (LVDS)
-Gigabit Video Interface (GVIF)
-USB
-IEEE 1394
-Ethernet
5.MOQ:20 PCS
Technical Specifications:
| Material | |
| Housing | PA |
| Center Pin | Copper Alloy |
| Outer contact | Zinc Alloy |
| Insulator | HTN |
| Electrical Performance | |
| Impedance | 100 Ω |
| Frequency Range | DC to 2 GHz |
| Return Loss | ≥20 dB to 1 GHz ≥17 dB to 2 GHz |
| Insertion Loss | ≤0.1 dB to 2 GH |
| Insulation Resistance | ≥ 1000 MΩ |
| Center Contact Resistance | ≤ 8mΩ |
| Test Voltage | 250 V rms |
| Working Voltage | 100 V rms |
| Contact Current | ≤ 1.5 A DC |
| Mechanical Performance | |
| Mating Cycles | ≥ 25 Time |
| Engagement Force | ≤ 30 N |
| Disengagement Force | ≥5 N |
| Retention Force Latch | ≥ 110 N |
| Temperature Range | -40 °C ~ +105 °C |
Product image:
FAQ:
1.Q:How do I apply for samples?
A:You can contact our customer service, you only need to pay the freight, our samples are free.
2.Q:Does your factory accept customized service?
A:Yes,we accept OEM&ODM.
3.Q:What are your company's strengths?
A:We have a professional technical team to ensure quality as well as efficiency.
